The ICON Vehicle Dynamics 2007 - Up Toyota Tundra Stage 5 suspension system is an excellent choice for those drivers looking to tune the capabilities of their pickup on the road as well as in the dirt.
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
$4,859.94

OVERVIEW

ICON Vehicle Dynamics Toyota Tundra Stage 6 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 6 system includes vehicle-specific tuned 2.5” coilover shocks featuring remote reservoirs for exceptional cooling properties and includes our Compression Damping Control Valve (CDCV) for 10 clicks of adjustment without the use of tools. These coilovers are also height adjustable from 1-3” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series Piggyback rear shocks utilize our CDCV valving that makes your suspension tunable front and rear. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra Stage 6 suspension system is an excellent choice for those drivers looking to tune the capabilities of their pickup on the road as well as in the dirt.

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

FEATURES & BENEFITS

  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • CDC tuned front and rear shocks for a custom tuneable ride
  • Adjustable coilovers from 1-3" of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • Rear expansion pack for 1.5” of lift and better ride quality
  • 100% Bolt-on system - no cutting, or welding necessary for install

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 6.00” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625” Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #43: 07-UP TUNDRA TUBULAR UPPER CONTROL ARM IS NOT COMPATIBLE WITH ALL SUBFRAME-DROP LIFT KITS. FOR ADJUSTABILITY PURPOSES THESE KITS MAY REQUIRE THE USE OF BILLET UPPER CONTROL ARM (PART #58560DJ).
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
  • APPLICATION NOTE #111: BUMP STOP SPACER KIT AVAILABLE THAT CAN BE INSTALLED TO INCREASE THREADS SHOWING BEYOND MAX RECOMMENDATION.
  • APPLICATION NOTE #122: NOT COMPATIBLE WITH REAR TRD SWAY BAR KIT
  • Ships in Multiple Boxes

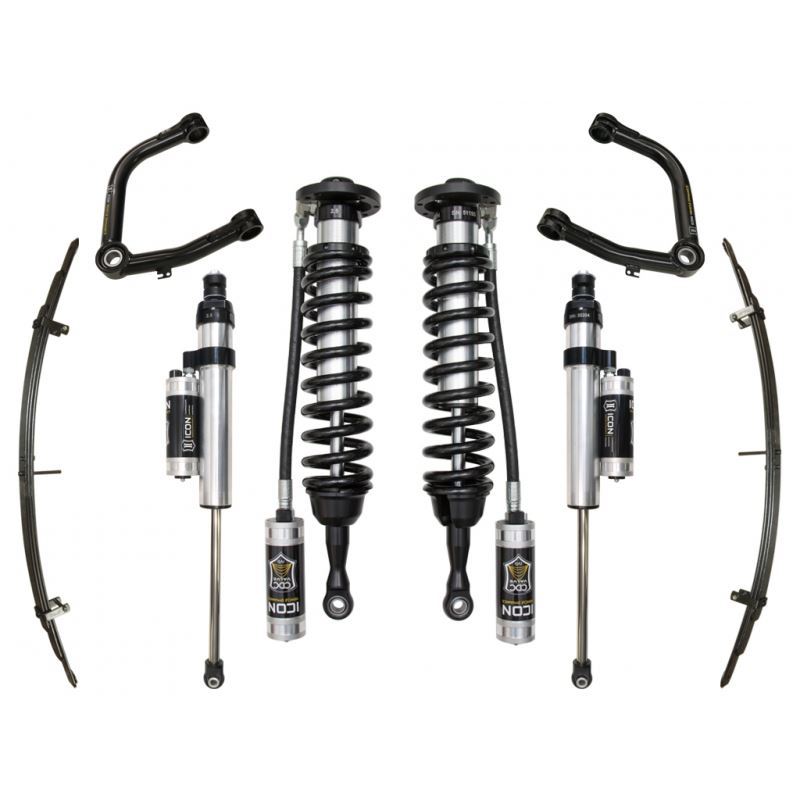

SYSTEM COMPONENTS:

  • 58750C (QTY: 1) | 07-21 TUNDRA 2.5 VS RR CDCV COILOVER KIT
  • 51200 (QTY: 1) | 07-21 TUNDRA REAR EXPANSION PACK KIT
  • 58460DJ (QTY: 1) | 07-21 TUNDRA TUBULAR UCA DJ KIT
  • 57720CP (QTY: 1) | 07-21 TUNDRA REAR 2.5 VS PB CDCV PAIR
